The Big Picture: Understanding the Ontology Structures

Ontologies are formalizations of knowledge that are built utilizing the principles of abstraction and modelling. An ontology models (like a formal specification of a program), the concepts and relationships that can formally exist for an agent or a collection of agents pertaining to some subject matter of interest to a particular community (e.g., business operators, medical practitioners, educators, technologists). At its elemental level, an ontology can be equated with taxonomic hierarchies of classes, class definitions, and the subsumption relation (superclass-subclass decompositions), along with the interrelationships between such object classes

Ontologies provides structure and organization to complex systems. This article explores the architectural framework of ontologies, from high-level organization to granular implementation details, using the metaphor of a well-organized city to illustrate these concepts.

1. Domains: The "Neighborhoods"

In an ontology, domains represent distinct bodies of knowledge or practice that form the foundation of the subject matter. These are also referred to as the "concerns" of the ontology (as in "concerning something"), or the "subject areas" or "specializations" that the ontology encompasses.

Just as a city has distinct neighborhoods that serve different purposes but work together through various types of connections, an ontology has distinct domains representing different areas of practice, each serving a specific purpose and interacting with other domains to create a functioning whole.

A few examples of domains in the Data Engineering Ontology include:

• Data Storage concerning the persistent retention of data through specialized storage systems and methods across various storage tiers

• Data Processing concerning execution of computational operations on data through batch or stream processing methods within defined workflows, transforming raw data into valuable information assets while maintaining consistency with master data standards and data model

• Data Quality & Governance concerning establishing and enforcing practices for ensuring data accuracy, consistency, and proper management across all data domains, including master data and data models

• Data Integration concerning establishing and managing the alignment and integration of data and concepts across different business or technical domains

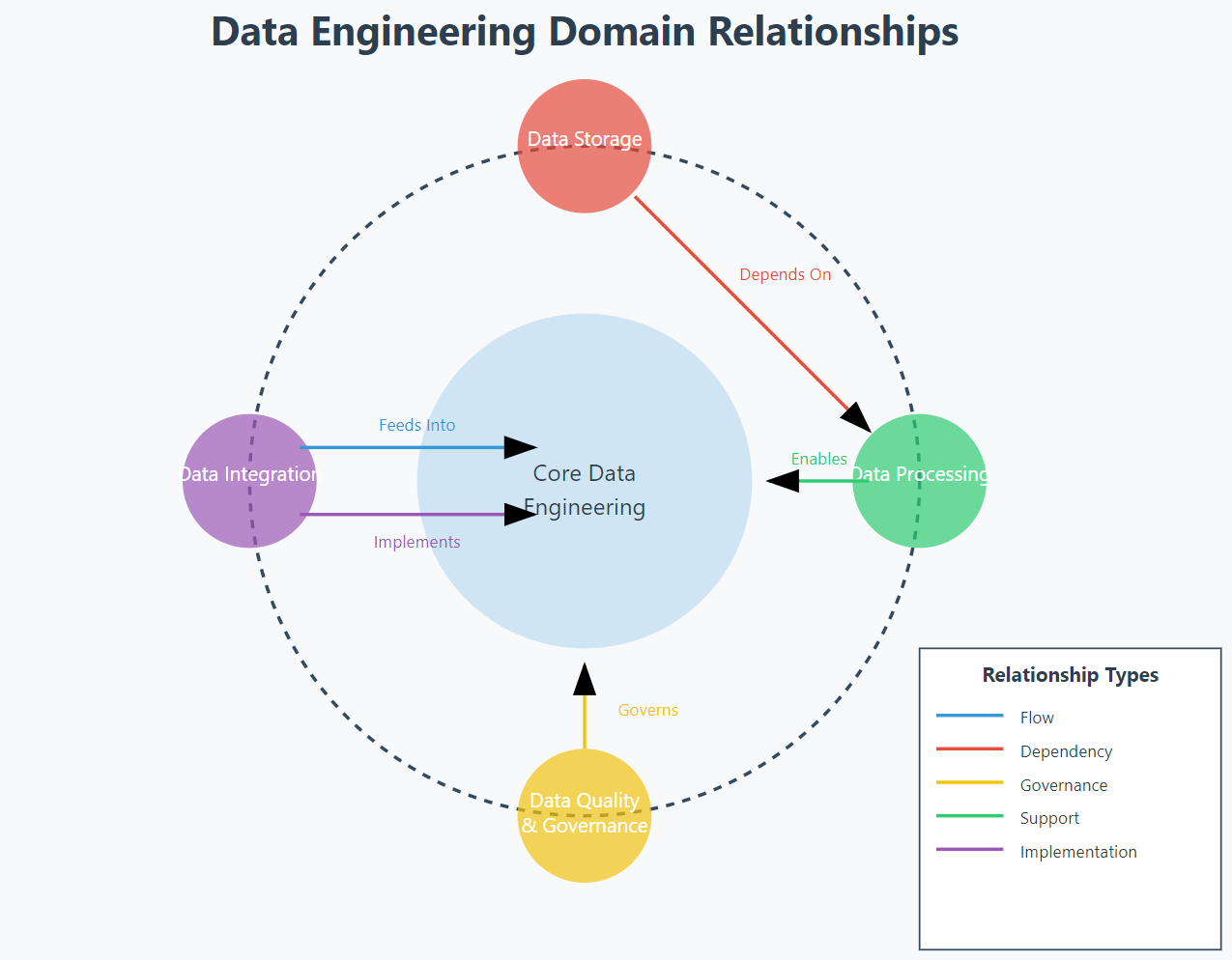

2. Relationships: The City's Connection Systems

Just as a city uses various types of infrastructure to connect and service its neighborhoods, the ontology uses different types of relationships to connect domains.

2.1 Domain Relationship Types

A. Flow Connections (like Transportation Systems)

• Highways (Major Data Flows)

  • "Feeds Into": Direct flow of data between domains

  • "Consumes From": Resource utilization between domains

        Example: Data Source → Data Integration → Data Storage

• Service Roads (Support Flows)

  • "Provides To": Service delivery between domains

  • "Receives From": Resource receipt between domains

 Example: Data Storage provides to Data Processing

B. Control Systems (like City Management)

• Traffic Control (Governance)

  • "Governed By": Regulatory oversight

  • "Orchestrates": Process coordination

         Example: Data Quality & Governance governs all domains

• Emergency Services (Critical Support)

  • "Monitors": Oversight and observation

  • "Manages": Direct intervention and control

         Example: Performance Optimization monitors all processing systems

C. Utility Systems (like City Infrastructure)

• Power Lines (Core Dependencies)

  • "Depends On": Critical requirements

  • "Utilizes": Resource usage

         Example: Data Processing depends on Data Storage

• Communication Networks (Integration)

  • "Coordinates With": Collaborative interactions

  • "Integrates With": System combinations

         Example: Data Integration coordinates with multiple source systems

D. Support Systems (like Public Services)

• Public Transportation (Enablement)

  • "Supports": Foundational assistance

  • "Enables": Capability provision

         Example: Infrastructure enables all processing activities

E. Planning Systems (like Urban Development)

• Zoning (Implementation)

  • "Implements": Realization of plans

  • "Applies To": Scope definition

         Example: Architecture patterns implement best practices

F. Community Connections (like Social Networks)

• Community Centers (Associations)

  • "Relates To": General connections

  • "Associates With": Loose coupling Example: Data Discovery relates to Data Catalog

         Example: Architecture patterns implement best practices

2.2 How These Connections Work Together

Practical Example: Data Pipeline

Consider how a data pipeline operates:

1. Data Sources feed into Data Integration

2. Data Integration depends on Infrastructure

3. The process is governed by Data Quality

4. Infrastructure enables the entire flow

5. Architecture patterns implement the design

6. All components relate to Documentation

More detailed examples of domain relationships are provided here…

3. Domain Concepts/Topics

Each domain, such as Data Storage, encompasses specialized concepts or topics. These concepts represent the core concerns or subfields within a domain. For example, within the Data Storage domain, the concept "Access Control and Security" is a specialized discipline that addresses the critical issue of data protection and user authorization. A few other examples of concepts pertaining to the Data Storage domain include:

• Data Lifecycle Management: Storing, archiving, and purging data responsibly over time.

• Data Partitioning and Organization: Structuring data for optimal retrieval and storage efficiency.

• Metadata and Cataloging: Labeling and indexing data for easy discovery and navigation.

• Data Backup and Recovery: Ensuring data can be restored in the event of loss or corruption.

Each concept carries its own specialized terminology or nomenclature—a set of terms that practitioners commonly use when discussing that area. This terminology can be thought of as the “group-speak” of experts within the field, where each term represents a specific ontological object that is relevant to that concept.

4. Ontological (Information) Objects

4.1 Formalizing the Terminology

Ontological Objects derive from the terms that are used to describe the concepts of an ontology domain. For example, for the Access Control and Security concept of the Data Storage domain, terms like Role, Permission, and Access Level are used to describe aspects of the execution of this concept (how it is accomplished). These terms are more than mere labels; they represent distinct ontological objects, each with its own properties and relationships, that are formally described and structured within the ontology.

One of the means that are available to describe ontological objects (such as Role in Access Control), is the Web Ontology Language (OWL). OWL enables the precise modeling of these objects, allowing them to be organized into class hierarchies (also known as “taxonomies”), that show how objects relate to one another. For example, Role might be classified as a supertype (or superclass), with specific roles (like Admin or User) defined as subtypes (or subclasses) within this hierarchy.

In this way, an ontology brings structure and clarity to complex domains by identifying key concepts, defining their nomenclature, and creating a structured model of the objects and relationships that underpin each area.

4.2 Defining Objects Using OWL

The Web Ontology Language (OWL) provides precise technical implementation at the object level.

OWL Class Structure

Class: DataStorageSystem
    SubClassOf: InfrastructureComponent
    Properties:
        hasStorageType: StorageType
        hasCapacity: xsd:long
        implementsBackup: BackupStrategy
        enforcesSecurity: SecurityPolicy

Object Properties and Relationships

(unlike domain-level relationships, OWL object properties define precise, logical connections)

ObjectProperty: implementsBackup
    Domain: DataStorageSystem
    Range: BackupStrategy
    Characteristics: Functional

ObjectProperty: enforcesSecurity
    Domain: DataStorageSystem
    Range: SecurityPolicy
    Characteristics: Functional

Constraints and Rule

OWL allows definition of logical constraints:

Class: SecureDataStorage
    EquivalentTo: DataStorageSystem
       and (enforcesSecurity some EnterpriseSecurityPolicy)
       and (implementsBackup some RedundantBackupStrategy)

4.3 Metadata

5. Why This Structure Matters

Understanding how the Data Engineering ontology is structured provides several key benefits that make it a valuable tool for both individuals and organizations.

Clarity

Just as a well-organized city makes it easy for residents to navigate and find what they need, our structured ontology provides clear pathways to understanding. When someone needs to understand how data flows from source systems to analytics dashboards, they can trace these connections through well-defined relationships. This clarity helps everyone, from new team members to experienced engineers, understand complex data systems and their interactions.

Completeness

Like a city planner's master plan, our ontology structure helps ensure we haven't missed anything important. By organizing knowledge into interconnected domains and clearly defining relationships, we can:

• Spot missing components in our data architecture

• Identify gaps in our processes or documentation

• Ensure all necessary connections exist between systems

• Verify that all critical dependencies are accounted for

Consistency

Similar to how city zoning laws ensure compatible development, our ontology provides a standard framework for thinking about and discussing data engineering concepts. This means:

• Teams across the organization use the same terminology

• System designs follow consistent patterns

• Documentation maintains a uniform structure

• Processes are described in a standardized way

Usability

Just as a city's infrastructure should serve its residents effectively, our ontology is designed for practical use. It's not just a theoretical framework – it's a working tool that helps people:

• Quickly find the information they need

• Understand how different parts of the system connect

• Apply consistent approaches to similar problems

• Share knowledge effectively across teams

6. Practical Benefits

The ontology structure serves different purposes for different activities. Here's how various groups can effectively use it:

6.1 For Learning

Whether you're new to data engineering or learning about a specific system:

• Begin by understanding the core domains relevant to your work

• Study how these domains connect through different types of relationships

• Explore the specific assets (tools, documents, processes) within each domain

• Use the structure to create a mental map of how everything fits together

6.2 For Planning

When designing new systems or modifications:

• Use the domain structure to ensure all necessary components are considered

• Map out dependencies early to avoid surprises later

• Identify potential impacts across connected domains

• Plan implementations that align with existing patterns

• Consider how new components will fit into the existing structure

6.3 For Communication

The structure provides a common language and framework for:

• Explaining system architecture to stakeholders

• Onboarding new team members efficiently

• Creating clear, consistent documentation

• Discussing changes and their impacts across teams

• Building shared understanding of complex systems

6.4 For Code Generation Automation

A well-structured ontology enables automated code generation across multiple layers. For example:

Data Layer Generation

# Generated from DataStorageSystem class
class DataStorageSystem:
    def __init__(self):
        self.storage_type: StorageType
        self.capacity: int
        self.backup_strategy: BackupStrategy
        self.security_policy: SecurityPolicy

    @property
    def is_secure(self) -> bool:
        return isinstance(self.security_policy, EnterpriseSecurityPolicy)

API Generation

# Generated from domain relationships
@router.post("/storage/systems")
async def create_storage_system(
    system: DataStorageSystem,
    backup: BackupStrategy,
    security: SecurityPolicy
) -> StorageSystemResponse:
    # Implementation
    pass

5.3 Validation Rules

# Generated from OWL constraints
def validate_storage_system(system: DataStorageSystem) -> bool:
    if system.is_secure:
        assert isinstance(system.backup_strategy, RedundantBackupStrategy), \
            "Secure storage requires redundant backup"
    return True

Documentation Generation

# Generated from ontology metadata
"""
DataStorageSystem
----------------
A component of the storage infrastructure that manages data persistence.

Properties:
- storage_type: The type of storage system (e.g., Block, Object)
- capacity: Total storage capacity in bytes
- backup_strategy: Applied backup methodology
- security_policy: Enforced security controls

Relationships:
- implementsBackup: Links to backup strategy
- enforcesSecurity: Links to security policy
"""
